Silhouette target turning system - 25 metres

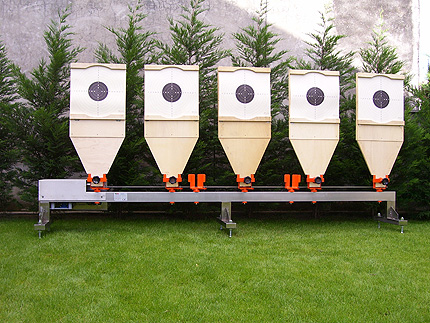

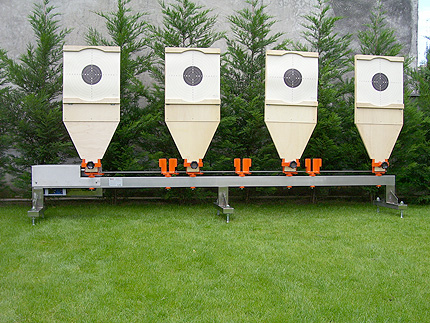

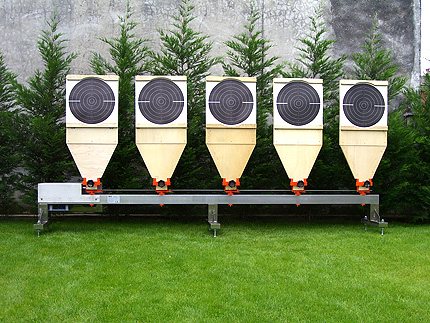

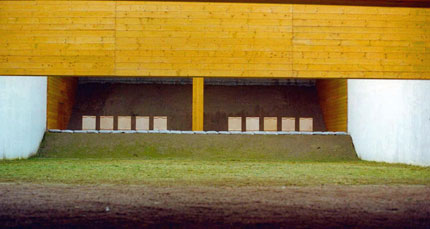

Silhouette target turning system for 25-metre outdoor stands, for automatic, standard and large calibre pistols. Turning silhouette targets are used in some of the most important Italian shooting ranges and are used for both national and international competitions; there are more than 200 turning silhouette target systems to date in Italy.
| TECHNICAL CHARACTERISTICS |
|
The targets rotate by 90° on a vertical axis.
They rotate in a clockwise direction when opening and an anticlockwise direction when closing.
Target rotation time is less than 0.3 seconds.
There is no visible vibration once the target has turned.
The distance between targets is 75 cm, the target axis is 1.40 m. off the ground (with CARP targets).

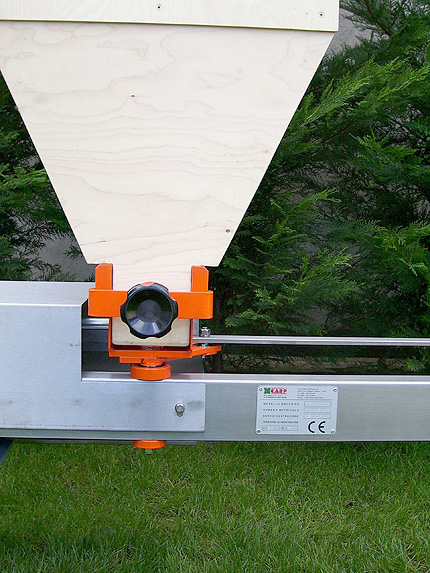

Target rotation is driven by one or more motor units complete with gears.
|
| |
| ELECTRICAL DETAILS |
|
The system is equipped with a safety limit switch for door open control.
The supply voltage can be adapted to standards existing in extra-European countries.

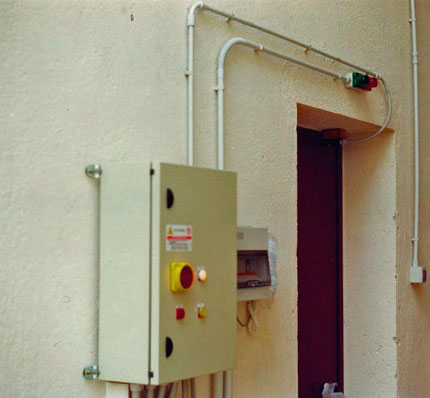

Electric power panel, grade of protection IP65 in compliance with En60 529 NEMA4, the following items are located on the front of the panel:
- Double key closing system
- Mains switch door lock
- Warning light – live panel
- Warning light – door open
- Reset button |
| |
|
|
|
