Target turning system - 50 metres
CARP target turning system for 50-metre stands, for .22 rifles and free pistols, can also be used for 100-metre stands by inserting pistol targets. The machine allows the shooter to change the target directly from the shooting position. A 500-piece target pack can be loaded into the machine offering excellent operating autonomy.
The same machine is available in a variety of models to satisfy various installation needs (in a trench, in an enclosed space, with or without a collector).
The system is used for sport competitions at national and international levels.
| TECHNICAL CHARACTERISTICS |
|
Front opening suitable for sighting targets for free pistols, whilst a mask must be fitted to the front of the machine for rifle targets.
The target slide guides can be adjusted in width to adapt to the various target sizes available on the market.
The targets slide vertically from top to bottom; the system uses fanfold targets.
Target feeding is controlled by a 24V AC reversible motor unit.
The machine works with both competition targets made from 200 gr. cardboard and training targets made from heavy paper.
|
| |
| ELECTRICAL DETAILS |
|

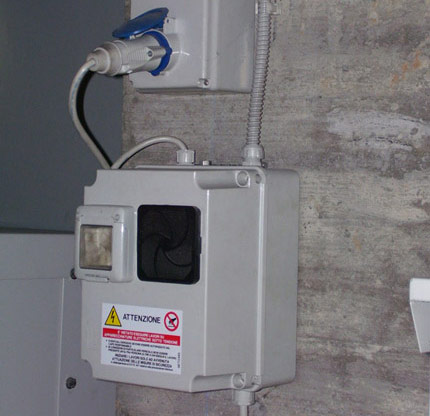

| Electric motor control box complete with button for insertion of the first target, transformer, motor protection fuse and magnetothermic switch protecting the power supply inlet.
Shooter’s bidirectional pushbutton control panel. |
| |
|
|
|
